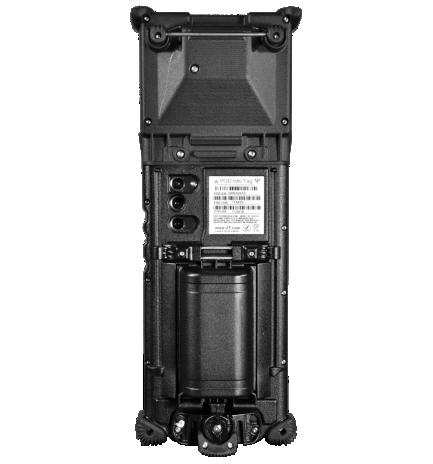

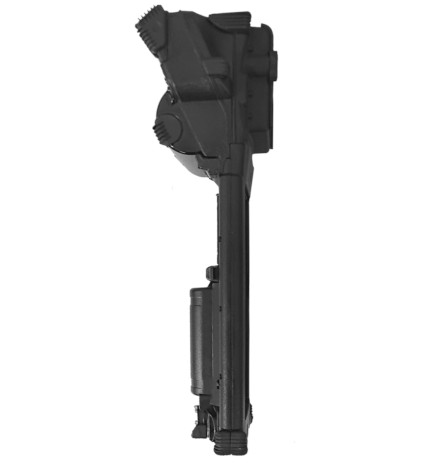

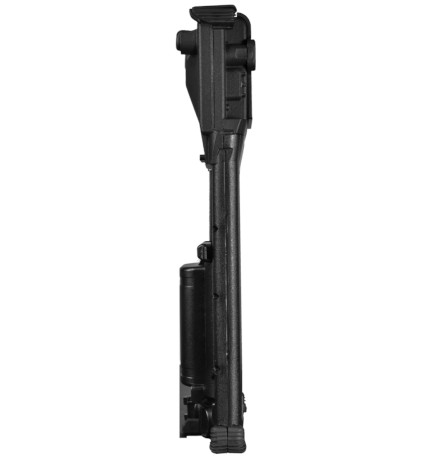

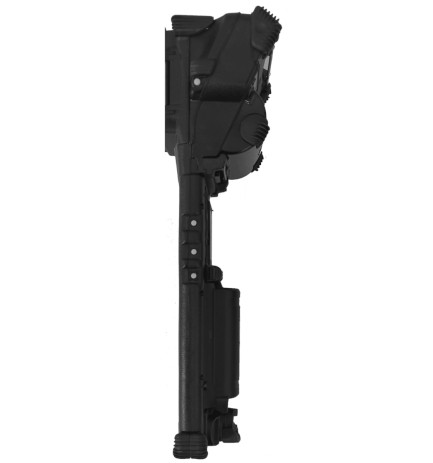

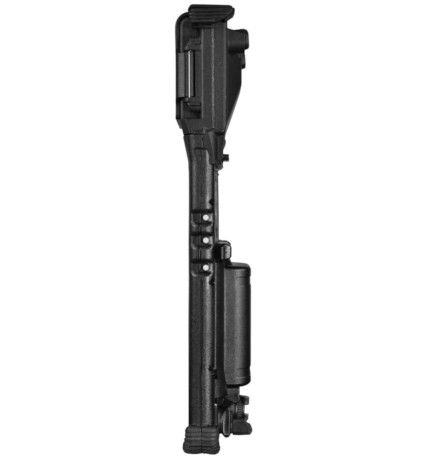

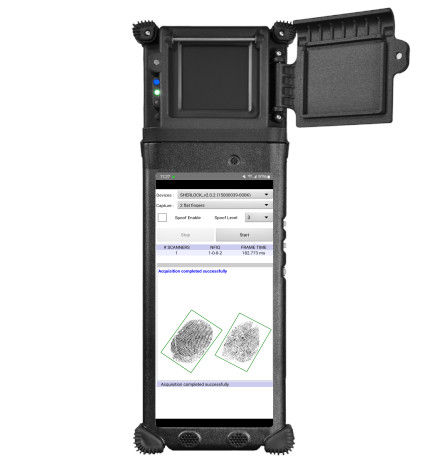

XF
with FAP 45 Fingerprint Scanner
The XF with an integrated FAP 45 single fingerprint scanner, when used with supported Android™ devices, can be used in a variety of applications and environments that require biometrics for identity and verification
With the XF you can take advantage of Android's many features, easily replace and upgrade components, and access real-time data even in harsh conditions.
FAP 45 Specifications:
- Resolution: 800 x 750 Pixels
- Sensing Area: 0.8" x 1" (20.32 mm x 25.4 mm)
- Fingerprint Image: 8-bit Grayscale
- API Interface:Capture Single Finger Direct/Rolls, Multi-Device/Multi-Thread Support
- FBI/Image Certifications: Meets EBTS Appendix F Mobile ID FAP 45 specifications using Appendix F of the FBI's Next Generation Identification Systems Image Quality Specifications
Options and features:
- Optional integrated high performance 1D/2D barcode scanner
- Optional 3-inch thermal printer (integrated or remote with Bluetooth)
- Hot swappable supplemental battery for extended operation
- Charging port charges both integrated and supplemental batteries
- Programmable LED indicator
- Integrated hardware provides communications between the Android device and XF peripherals
- XF Service application allows user configuration of XF features
- Rugged watertight housing protects against dust and liquid, can be used in inclement weather, and withstands drops from four feet
See our Brochure to learn more.
Note: Android devices are not included, and must be purchased separately. Supported devices include the Samsung Galaxy Note20 and Samsung S22 Ultra. Contact Two Technologies for more information.
Applications
Accessories
60 Watt PD Charger
Connector: USB-C
Input: 100-240VAC
Output: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=3A
Charging Cable
Type: USB C to USB C
Length: 3.3 feet
Gauge: 28AWG
XF Car Charger
Connector: USB-C
Input: 12-24V
Output: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=2.25A(45W Max)
Carrying Handle
Made of nylon twill, this detachable handle clips on to the XF with d-rings and is adjustable.
Carrying Case
Made of nylon twill, this case can accommodate the XF, a spare battery, and extra paper rolls. Attach it to your belt or use the adjustable shoulder strap.
Shoulder Strap
Made of nylon twill, this adjustable strap allows you to carry the XF over your shoulder freeing up your hands
Hand Strap
Made of nylon twill, this adjustable strap allows you to easily carry the XF in either hand
Single Position Charging Dock
This single charging station accommodates both the XF and a spare supplemental battery. It has three LEDs to indicate power, XF connection status and supplemental battery charge status.
Four Position Charging Dock
This multi-position charging station accommodates up to four XFs and four spare supplemental batteries. It has three LEDs to indicate power, XF connection status and supplemental battery charge status.
