XF Handheld Computer with Integrated Printer

This XF solution1 features an integrated 3-inch thermal printer that generates text, barcodes, images, and simple graphics on durable polyvinyl media without carrying a separate belt-mounted printer.

Advanced formatting options, support for eight barcode symbologies, printer status reporting, and black mark sensing make it ideal for field personnel who need to print citations, receipts, labels, permits, and other documents on demand.

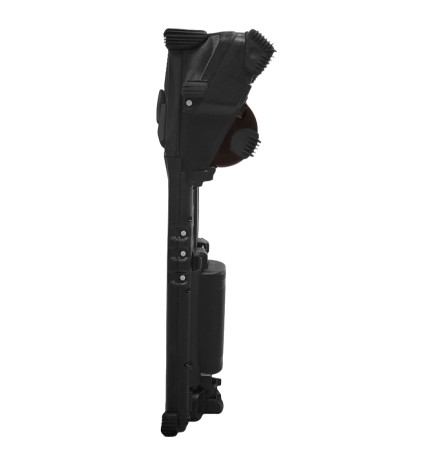

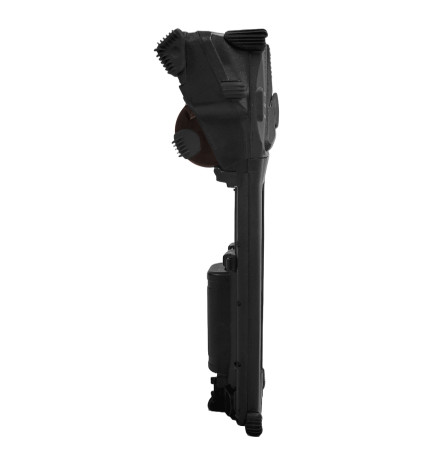

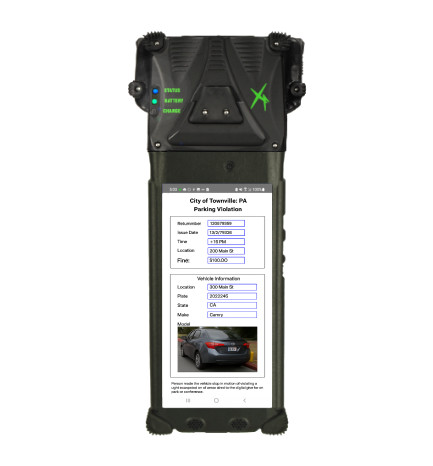

XF with Integrated Printer

  • Charge Anywhere: Multiple charging options—including desktop docks, vehicle chargers, and USB PD wall chargers—keep the XF ready for any deployment
  • Stay Productive Longer: Intelligent power management and hot-swappable batteries maximize uptime and eliminate interruptions during battery replacement.
  • Accelerate Development: The XF SDK and XF Service simplify Android application development while providing seamless access to printer, barcode scanner, power management, and other XF features.

  • Modular design allows easy component upgrades and replacements
  • Hot-swappable supplemental battery for extended operation
  • Charging port charges both integrated and supplemental batteries
  • Dedicated LED indicators for battery and charging status; a third LED is user-programmable
  • Durable case protects against water, dust, and four-foot drops

  • Printing Method: Direct Thermal
  • Resolution: 203 dots/inch
  • Media Width: 3.125 in. (80 mm) max.
  • Print Width: 2.8 inches (72 mm)
  • Control: SDK
  • Sensors: Paper Out/Black Mark, Cover Open
  • Retracting stainless steel cutting blade allows use of polyvinyl media
  • Paper Type: Direct thermal roll/variable length printing on polyvinyl
  • Supported Fonts:
    • Courier: 12.7 cpi, 13.5 cpi, 14.5 cpi, 15.6 cpi, 16.9 cpi, 18.5 cpi, 20.3 cpi, 22.6 cpi, 25.4 cpi
    • Sans Serif: 4.2 cpi, 5.5 cpi, 10.2 cpi, 10.7 cpi, 16.9 cpi, 18.5 cpi, 20.3 cpi
  • Supported Barcodes: Code 128, Codabar, Code 39, Interleaved 2 of 5, UPC-A, UPC-E, EAN-8, and EAN-13

XF 60 Watt PD Charger

60 Watt PD Charger

Universal 100–240 VAC power adapter with a USB-C connector for charging XF devices.

XF Charging Cable

Charging Cable

Three- or six-foot USB-C to USB-C cable (28 AWG) for connecting the XF to supported chargers.

XF Car Charger

USB-C Car Charger

Designed specifically for XF devices. It has an input of 12–24 VDC, a max output of 45 W, and supports the following output profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A

XF Carrying Handle

Carrying Handle

Made of nylon twill, this detachable handle clips onto the XF with D-rings and is adjustable.

XF Carrying Case

Carrying Case

Made of nylon twill, this case can accommodate the XF, a spare battery, and extra paper rolls. Attach it to your belt or use the adjustable shoulder strap.

XF Shoulder Strap

Shoulder Strap

Made of nylon twill, this adjustable strap allows you to carry the XF over your shoulder for hands-free carrying during field work.

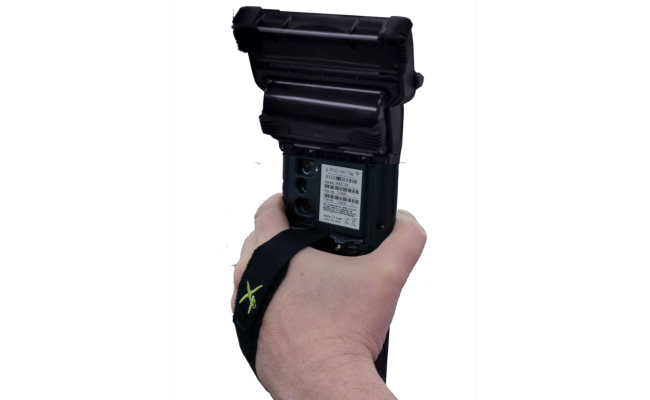

XF Hand Strap

Hand Strap

Made of nylon twill, this adjustable hand strap provides a more secure grip during use.

XF Single Position Charging Dock

Single Position Charging Dock

This single charging station holds one XF and a spare supplemental battery. It has three LEDs that indicate power, XF connection status and supplemental battery charge status.

XF Four Position Charging Dock

Four Position Charging Dock

This charging station holds up to four XFs and four spare supplemental batteries. It has three LEDs that indicate power, XF connection status and supplemental battery charge status.

1. Android devices are not included and must be purchased separately. For more information, contact Two Technologies.
