XF Mobile Printer

As part of a flexible two-piece printing solution, this lightweight 3-inch thermal mobile printer when paired with an XF rugged handheld computer or other Android™ device can print documents, citations, receipts, labels, permits, tickets, and other field documents on demand.

Designed for maximum portability, it can be carried on a belt, mounted in a vehicle, or placed at a workstation to adapt to virtually any work environment.

Advanced formatting capabilities, support for eight barcode symbologies, real-time printer status reporting, and black mark sensing deliver reliable printing wherever the job takes you.

XF Mobile Printer
  • Charge Anywhere: Multiple charging options—including desktop docks, vehicle chargers, and USB PD wall chargers—keep the XF Printer ready for any deployment
  • Accelerate Development: The XF SDK and XF Service simplify Android application development while providing seamless access to printer, barcode scanner, power management, and other XF features.
  • Minimize Downtime: A removable rechargeable battery can be quickly replaced to keep the printer operating throughout extended shifts.
  • Works on any Android 13 or above device
  • Removable rechargeable lithium-ion battery
  • Programmable multi-function button
  • Dedicated LED indicators for battery and charging status; a third LED is user-programmable
  • Durable case protects against water, dust, and four-foot drops
  • Printing Method: Direct Thermal
  • Resolution: 203 dots/inch
  • Media Width: 3.125 in. (80 mm) max.
  • Print Width: 2.8 inches (72 mm)
  • Control: SDK
  • Sensors: Paper Out/Black Mark, Cover Open
  • Retracting stainless steel cutting blade allows use of polyvinyl media
  • Paper Type: Direct thermal roll/variable length printing on polyvinyl
  • Supported Fonts:
    • Courier: 12.7 cpi, 13.5 cpi, 14.5 cpi, 15.6 cpi, 16.9 cpi, 18.5 cpi, 20.3 cpi, 22.6 cpi, 25.4 cpi
    • Sans Serif: 4.2 cpi, 5.5 cpi, 10.2 cpi, 10.7 cpi, 16.9 cpi, 18.5 cpi, 20.3 cpi
  • Supported Barcodes: Code 128, Codabar, Code 39, Interleaved 2 of 5, UPC-A, UPC-E, EAN-8, and EAN-13
  • Connectivity: Bluetooth®, Version 5.0, Class 2, BLE
  • Battery Type: Removable rechargeable lithium-ion

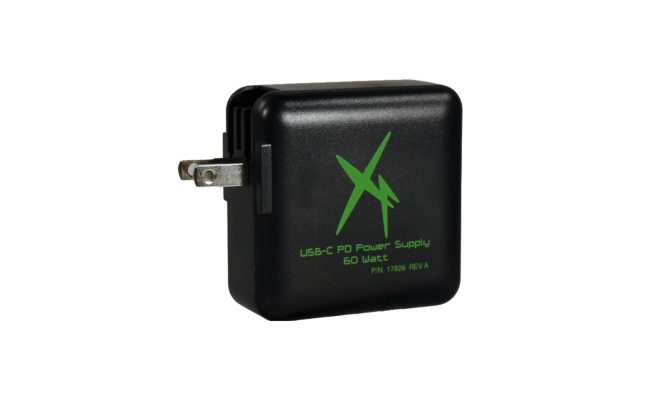

XF 60 Watt PD Charger

60 Watt PD Charger

Universal 100–240 VAC power adapter with a USB-C connector for charging XF devices.

XF Charging Cable

Charging Cable

Three- or six-foot USB-C to USB-C cable (28 AWG) for connecting the XF to supported chargers.

XF Car Charger

USB-C Car Charger

Designed specifically for XF devices. It has an input of 12–24 VDC, a max output of 45 W, and supports the following output profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A

XF Carrying Handle

Carrying Handle

Made of nylon twill, this detachable handle clips onto the XF with D-rings and is adjustable.

XF Shoulder Strap

Shoulder Strap

Made of nylon twill, this adjustable strap allows you to carry the XF over your shoulder for hands-free carrying during field work.

XF Printer Weather Deflector

Weather Deflector

Durable Lexan weather deflector easily snaps on to prevent water and snow from seeping into the printer and causing damage.

XF Single Position Charging Dock

Single Position Charging Dock

Holds one XF and a spare supplemental battery. LEDs indicate power, XF connection status and supplemental battery charge status.

XF Printer Pedestal for Charging Dock

Printer Pedestal for Charging Dock

Securely holds the printer for charging in a single or four position dock. Sold separately.

XF Four Position Charging Dock

Four Position Charging Dock

Holds up to four XFs and four spare supplemental batteries. LEDs indicate power, XF connection status and supplemental battery charge status.

1. Android devices are not included and must be purchased separately. For more information, contact Two Technologies.
