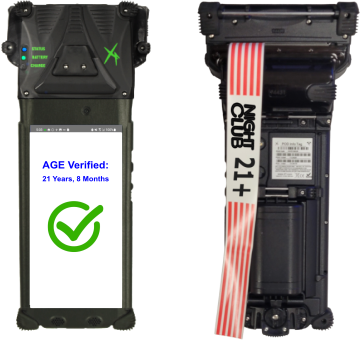

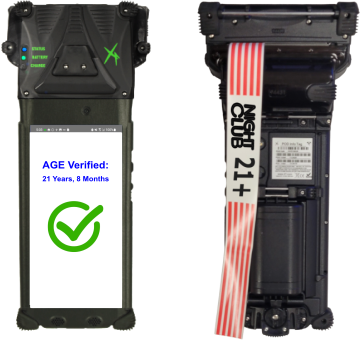

XF Handheld Computer with Integrated Printer & Wristband Option
Designed for high-volume guest registration and access control, this XF solution1 can print durable, 1” x 11” tamper-evident waterproof Mylar® wristbands to accelerate check-in, while improving security and reducing fraud.
Applications include: Entertainment (Festivals and Nightclubs), Institutional (School and Nonprofit Events), and Tourism (Parks and Guided Tours)
- Supports automated scaling of bold fonts to identify age, access level, or VIP status from a distance
- Prints high-contrast monochrome images and photos
- Generates unique barcodes that can store guest profiles, enable cashless payments, and enforce time-gated access
- Minimizes fraud by replacing easily forged stamps or visual markers with visual wristbands
- Reduces wait times, allowing guests to spend more time enjoying the venue and increasing opportunities for concessions and merchandise sales.
- Improves front-gate throughput by reducing admission bottlenecks.
- Modular design allows easy component upgrades and replacements
- Hot-swappable supplemental battery for extended operation
- Charging port charges both integrated and supplemental batteries
- Dedicated LED indicators for battery and charging status; a third LED is user-programmable
- Durable case protects against water, dust, and four-foot drops
- Printing Method: Direct Thermal
- Resolution: 203 dots/inch
- Media Width: Up to 3.125 in. (80 mm) max.
- Standard Print Width: 2.8 inches (72 mm)
- Wristband Print Width: 1.0 inches (25.4 mm)
- Control: SDK
- Sensors: Paper Out/Black Mark, Cover Open
- Retracting stainless steel cutting blade allows use of polyvinyl media
- Paper Type: Direct thermal roll/variable length printing on polyvinyl
- Supported Fonts:
- Courier: 12.7 cpi, 13.5 cpi, 14.5 cpi, 15.6 cpi, 16.9 cpi, 18.5 cpi, 20.3 cpi, 22.6 cpi, 25.4 cpi
- Sans Serif: 4.2 cpi, 5.5 cpi, 10.2 cpi, 10.7 cpi, 16.9 cpi, 18.5 cpi, 20.3 cpi
- Supported Barcodes: Code 128, Codabar, Code 39, Interleaved 2 of 5, UPC-A, UPC-E, EAN-8, and EAN-13
60 Watt PD Charger
Universal 100–240 VAC power adapter with a USB-C connector for charging XF devices.
Charging Cable
Three- or six-foot USB-C to USB-C cable (28 AWG) for connecting the XF to supported chargers.
USB-C Car Charger
Designed specifically for XF devices. It has an input of 12–24 VDC, a max output of 45 W, and supports the following output profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
Carrying Handle
Made of nylon twill, this detachable handle clips onto the XF with D-rings and is adjustable.
Carrying Case
Made of nylon twill, this case can accommodate the XF, a spare battery, and extra paper rolls. Attach it to your belt or use the adjustable shoulder strap.
Shoulder Strap
Made of nylon twill, this adjustable strap allows you to carry the XF over your shoulder for hands-free carrying during field work.
Hand Strap
Made of nylon twill, this adjustable hand strap provides a more secure grip during use.
Single Position Charging Dock
This single charging station holds one XF and a spare supplemental battery. It has three LEDs that indicate power, XF connection status and supplemental battery charge status.
Four Position Charging Dock
This charging station holds up to four XFs and four spare supplemental batteries. It has three LEDs that indicate power, XF connection status and supplemental battery charge status.
1. Android devices are not included and must be purchased separately. For more information, contact Two Technologies.
